B9 VW

B9 VW

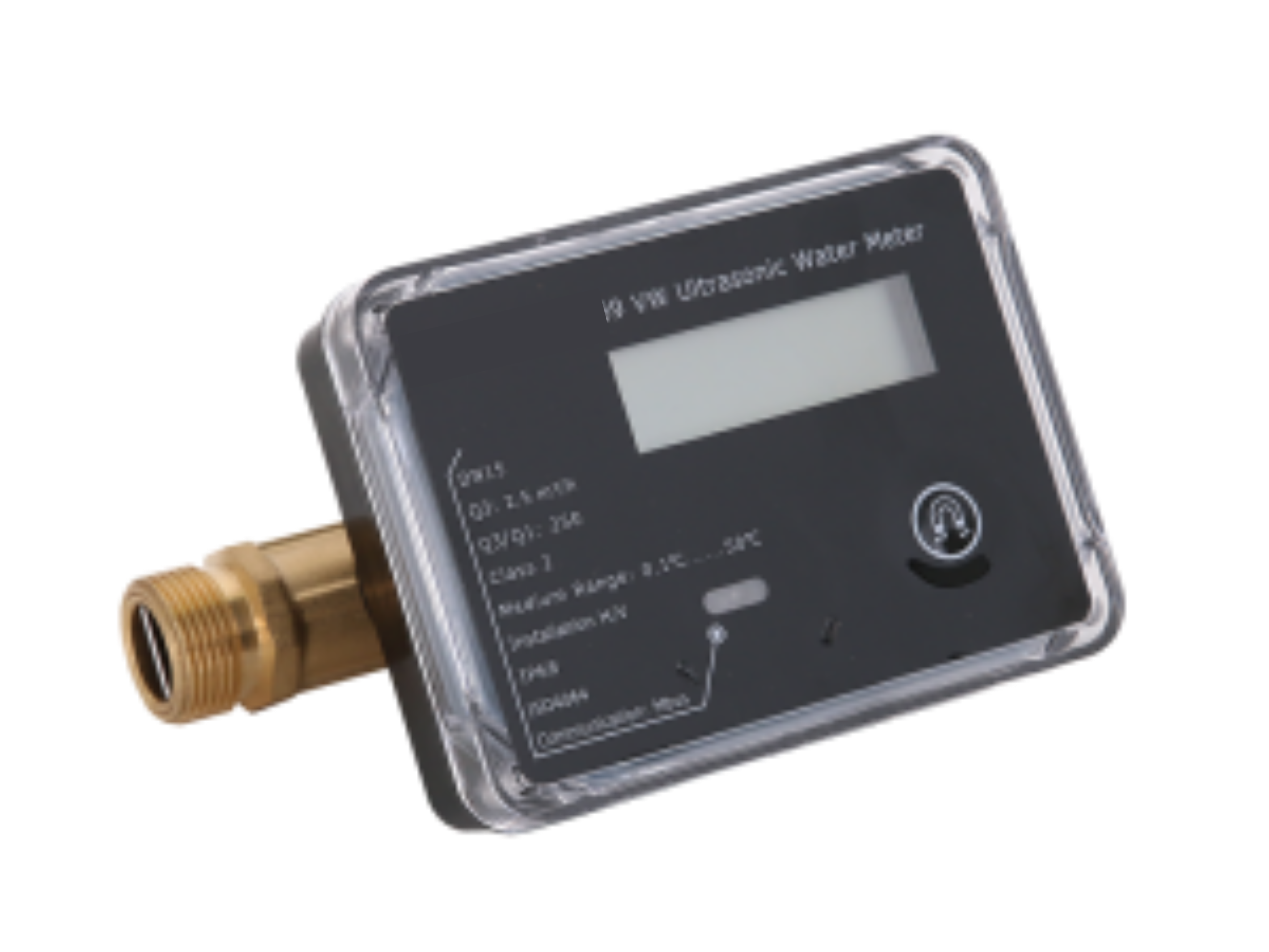

B9 VW launched by BOVE combines years experience in metering research and development, adopting state-of-the-art technology and sophisticated production. It has been proven that B9 VW is reliable and absolute matured achievement in high accuracy measurement.

In addition, the special compact design does completely assure the qualify of water-proof protection. The accuracy is guaranteed even if it is installed under water in a long time. Moreover, the core engineering concept of B9 VW aims at cutting down the budget on overall operating costs from remote meter readings.

Description

Specifications

Model	B9 VW – 15	B9 VW – 20	B9 VW – 25	B9 VW – 32	B9 VW – 40
Pipe Diameter	DN15	DN20	DN25	DN32	DN40
Minimum Flow Rate, qi (m³/h) @R500	0.005	0.008	0.0126	0.02	0.032
Permanent Flow Rate, qp (m³/h)	2.5	4.0	6.3	10	16
Maximum Flow Rate, qs (m³/h)	3.125	5.0	7.875	12.5	20
Connection	G3/4′	G1′	G1 1/4′	G1 1/2′	G2′
Length (mm)	165	195	225	180	200
Width (mm)	75	75	75	75	75
Height (mm)	89	94	104	114	119
Temperature	Medium Range: 0.1℃……30/50℃ (T30/ T50) Ambient temperature: 5~55 ℃ Storage temperature: -20~60 ℃
Metrological Class	Class 2, R160/ R200/ R250/ R400/ R500
Maximum Operation Pressure	1.6 Mpa
Pressure Loss	△P≤40kPa
Pressure Stage	PN16
Protection Class	IP68
Battery	6/ 10/ 16 years service life
Data Storage	24/ 120 logs, daily/ weekly/ monthly.
Environment Requirement	E1, M1, B
Interface & Communication (Optional)	Optical Port Pulse output M-Bus RS-485 LPWAN (LoRaWAN, NB-IoT, Sigfox)
Installation	360 degree
Display and Indication	Unit: L/ m³/ Gal (Optional)LCD: 8-digit
Standard Compliance	EN14154 OIML R49 ISO4064
