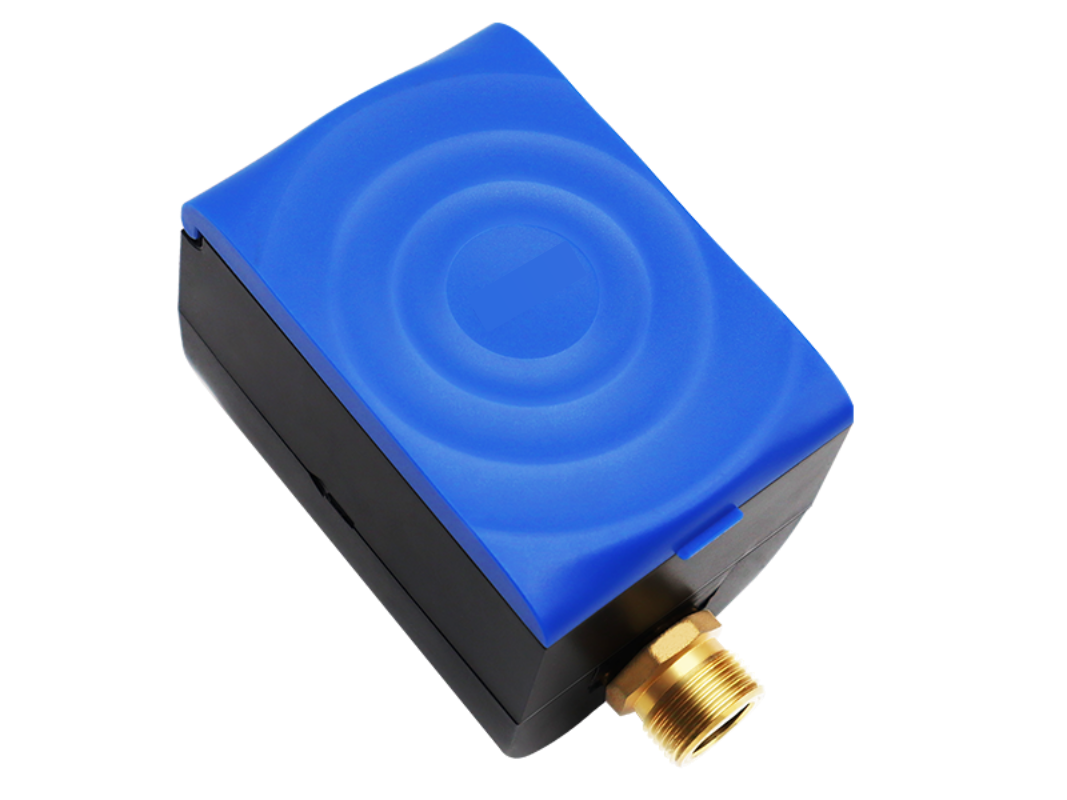

BECO X (DN15-DN20)

This time, a next-generation ultrasonic water meter,
BECO X, is released after Bove engineers’ two years dedication.

A fresh new firmware enabling an overall power consumption lowering by 18 percent.
With same battery plan, BECO X offers our customer a longer period measurement on various communications.

Working together with Alpaca-E Remote Meter Reading & Control System,
BECO X is able to collect and analyze over millions users’ water consuming data.
Bove’s engineers are able to optimize the meter metrology and communication by utilizing these big data.

Utilities also upgrade their water supply network with the help of these water consumption data.

Description

Flexible Battery Life Span

BECO X has no moving parts, presents as IP68, and its body is fabricated from durable brass material. This robust design makes the BECO X maintenance-free and highly precise throughout its flexible 10 or 15 years battery life depends upon customers’ needs

Battery Replaceable

Battery is able to get replaced in case of failure of battery sets. This action can be treated by professional engineers without any injection on electronic parts.

Proof of Humidity, Water and UV.

BECO X is specially designed for extreme complex environment which has high humidity, blood or high UV.

Model	BECO X – 15	BECO X – 20	BECO X – 25	BECO X – 32	BECO X – 40
Pipe Diameter	DN15	DN20	DN25	DN32	DN40
Minimum Flow Rate, qi (m³/h) @R500	0.005	0.008	0.0126	0.02	0.032
Permanent Flow Rate, qp (m³/h)	2.5	4.0	6.3	10	16
Maximum Flow Rate, qs (m³/h)	3.125	5.0	7.875	12.5	20
Connection	G¾’	G1′	G1¼’	G1½’	G2′
Length (mm)	165	195	225	180	200
Width (mm)	81	81	81	81	81
Height (mm)	100	100	118	128	135
Temperature	Medium Range: 0.1℃……30/50/70℃ (T30/T50/T70) Ambient temperature: 5~55 ℃ Storage temperature: -20~60 ℃
Materials	Brass 59-1
Metrological Class	Class 2 R160/ R200/ R250/ R400/ R500
Maximum Operation Pressure	1.6 Mpa
Pressure Loss	△P≤40kPa
Etapa de presión	PN16
Protection Class	IP68
Battery	6/ 10/ 16 years service life
Data Storage	24/ 120 logs, daily/ weekly/ monthly.
Environmental Requirement	E1, M1, B
Interface & Communication (optional)	Optical Port M-Bus RS-485 Pulse output LPWAN (LoRaWAN, NB-IoT, Sigfox)
Installation	360 degree
Display and Indication	Unit: L/ m³/ Gal (Optional) LCD: 8-digit
Standard Compliance	EN14154 ISO4064 OIML R49
